In high-stakes industrial environments, continuous supply-voltage fluctuations, line noise, and transient spikes pose immediate structural risks to sophisticated machinery. Modern automated manufacturing facilities—spanning biopharmaceuticals, precision CNC machining, heavy metallurgy, and semiconductor fabrication—require grid integrity engineered to absolute tolerances. Selecting an established, ISO-certified voltage stabilizer manufacturer is no longer merely a procurement operation; it is a fundamental risk mitigation strategy aimed at maintaining Total Cost of Ownership (TCO) optimization and operational continuity.
This technical white paper synthesizes core engineering metrics, structural topologies, and procurement benchmarks across the international power conditioning sector. As grid profiles evolve with the integration of renewable generation sources, industrial buyers must evaluate power correction equipment based on active dynamic response speed, Total Harmonic Distortion (THD) attenuation, thermal endurance, and IoT digital-twin telemetry interface capabilities.
Below is an enterprise-grade selection of heavy-duty, high-precision power control equipment designed for demanding global industrial applications, medical labs, and critical infrastructure projects.

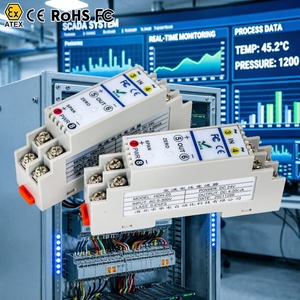

Galvanically isolated 3-phase to 1-phase voltage conversion module integrated with precision current-to-voltage sensing transducers for real-time telemetry.
High-precision automatic voltage regulator designed specifically for sensitive laboratory analyzers, diagnostic equipment, and biopharma production lines.

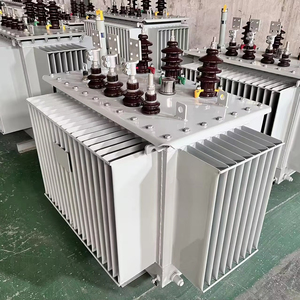

Industrial-grade copper-wound step-down power transformer supporting high-voltage distribution networks down to standard plant operating voltages.

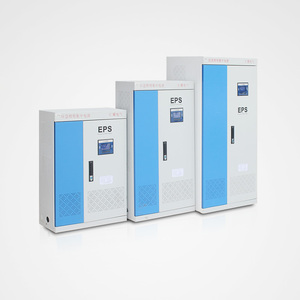

Customizable heavy-duty emergency power AVR tailored for municipal and industrial firefighting systems, ensuring uninterrupted pump operation.

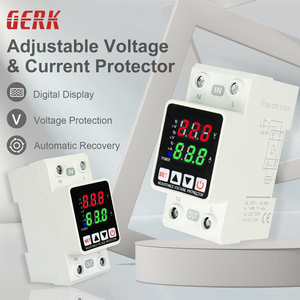

Multifunction monitoring relay distribution unit providing 63A adjustable protection thresholds and real-time digital parameter readouts.

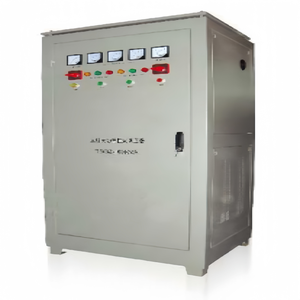

100% pure electrolytic copper toroidal winding AVR featuring ultra-fast response microcontrollers and clear digital voltage telemetry panels.

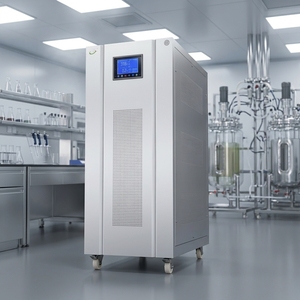

Bulk heavy-duty SBW series column-transformer voltage stabilizer designed to compensate for severe grid sags in pharmaceutical environments.

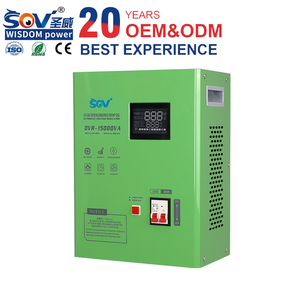

Wide-band protection system optimized for high-power compressors, commercial refrigeration, and severe low-voltage grid zones.
When engineering critical electrical infrastructure, selecting between legacy electro-mechanical servo-driven AVRs, static thyristor-switched regulators (SVS), and active IGBT-based Static VAR Generators (SVG) requires evaluating dynamic compensation bandwidth and total harmonic footprint.
| Performance Metric | Electromechanical Servo AVR | Static Thyristor AVR (SVS) | Static VAR Generator (SVG / active) |
|---|---|---|---|
| Correction Mechanism | Carbon brush on variable autotransformer | Solid-state SCR tap selection | IGBT Inverter PWM Switching |
| Response Time | 20ms to 50ms / Volt (Slow) | < 20ms (Medium-Fast) | < 5ms (Instantaneous) |
| Regulation Accuracy | ±1.0% to ±1.5% | ±1.5% to ±2.5% | Continuous Stepless (±0.5%) |
| Maintenance & Life | Regular carbon brush replacement required | No moving parts; medium lifespan | 100% Solid-state; > 15-year operational design life |
| Power Factor Mitigation | Passive (Uncorrected) | Requires external capacitor banks | Active Dynamic Mitigation (-1 to +1 lead/lag) |
| Harmonic Generation (THD) | Zero introduced harmonics | Low-to-medium switching harmonics | Active Harmonic Suppression built-in |
As indicated in the benchmark table above, high-speed industrial facilities processing rapid transient loads (such as arc welding stations, spot welders, and heavy induction motors) are increasingly transitioning from mechanical servo systems to solid-state SVG cabinets to eliminate physical contact wear and voltage flicker.
Rooted in over four decades of rigorous electrical engineering expertise since 1980, our manufacturing baseline—headquartered in the industrial heart of Morbi, Gujarat, India—stands as a premier benchmark for industrial transformer and power conditioning technology under the globally recognized Vulcan enterprise brand.
Every single voltage stabilizer, step-down transformer, and static generator undergoes comprehensive dielectric withstand testing, partial discharge analysis, and load-loss verification, ensuring full alignment with strict international standards.
Unlike compromised aluminum or CCA alternatives, our heavy-duty AVRs utilize vacuum-pressure impregnated (VPI) Class H/F insulated electrolytic copper windings, dramatically reducing internal I²R thermal dissipation losses.
Built explicitly to survive unmitigated high-ambient temperature ranges (up to 55°C), high-humidity zones, and dusty mining or chemical plant environments without derating capacity performance metrics.
Our OEM export division supplies specialized high-capacity voltage stabilizers across over 30 countries throughout Africa, the Middle East, South Asia, and Latin America. All export units feature ruggedized, export-compliant ISPM-15 wooden crating, anti-corrosion VCI barrier vacuum sealing, and full documentation to streamline customs clearance for enterprise infrastructure tenders.
The global industrial voltage stabilizer market is experiencing a structural paradigm shift. As corporate sustainability targets converge with smart grid mandates, procurement officers must evaluate power stabilization infrastructure through the lens of long-term grid evolution.
Next-generation stabilizers are shifting from isolated offline equipment to smart grid nodes. Integrated Modbus RS485, CANbus, and Ethernet gateways enable predictive health monitoring—tracking contact degradation, temperature profiles, and voltage deviation trends via digital twin dashboards before failure events occur.
In response to stringent carbon neutrality regulations (such as EU Tier 2 Eco-design standard), progressive manufacturers are implementing amorphous metal alloy ribbon cores. These cores exhibit up to 70% lower no-load magnetic hysteresis loss compared to conventional grain-oriented silicon steel (CRGO).
With high penetrations of localized solar PV and wind generation causing bidirectional power flow and severe voltage spikes, modern stabilizers are combining micro-energy storage ultra-capacitors with dynamic Static VAR Generators to buffer sub-cycle dropouts seamlessly.
Direct responses to critical technical queries raised by plant managers, EPC engineers, and international procurement specialists during specification alignment.
Induction motors, air compressor pumps, and refrigeration units draw an initial direct-on-line (DOL) locked-rotor inrush current of 5 to 7 times their nominal running current. To prevent voltage collapse during startup, size the kVA rating of the stabilizer using the following sizing ratio: Stabilizer kVA = (Total Running Motor kW × 1.25) + (Largest Motor Starting kW × 2.5). For soft-starter or VFD-driven machinery, a standard safety margin factor of 1.25x to 1.35x nominal load is sufficient.
Balanced regulation AVR units adjust all three phases based on the sensing line of a single phase. This is suitable only when line voltages and connected loads are perfectly symmetrical. However, in modern industrial facilities with single-phase auxiliary taps, unequal phase loading, or severe line-to-line imbalance, an Individual Phase Regulation (Three-Servo Circuit) Stabilizer is essential. It continuously adjusts each phase independently via separate servo loops, maintaining a strict ±1% output line-to-neutral stability regardless of imbalance up to 100%.
Electrolytic copper possesses a vastly lower electrical resistivity (1.68 × 10⁻⁸ Ω·m) compared to aluminum (2.65 × 10⁻⁸ Ω·m). CCA windings exhibit high thermal expansion stress, high contact-resistance fatigue at connection joints, and severe I²R copper losses. Utilizing 100% electrolytic copper ensures superior thermal mass, enhanced mechanical strength under heavy short-circuit stress, and a significantly extended operating life exceeding 20 years under continuous full load.
Enterprise procurement specifications should mandate full compliance with international standards, including: IEC 60076 (Power Transformers), IEEE C57 (Distribution & Regulating Transformers), IEC 61000-6-2/4 (Electromagnetic Compatibility & Immunity), CE Directive 2014/35/EU, and manufacturing quality compliance under ISO 9001:2015 management systems.
An active Static VAR Generator (SVG) utilizes an internal high-frequency IGBT inverter network connected via a coupling reactor. The internal DSP measures line voltage and current vectors in real-time, instantly injecting inductive or capacitive reactive current to shift the phase angle of the system to unity (0.99 to 1.00 PF). By actively supplying localized VAR demands, the SVG simultaneously mitigates line voltage drops caused by reactive line impedances.
Our application engineering team provides customized transformer designs, high-capacity industrial AVRs, and specialized export support tailored to your project requirements.
