Direct Factory Export Models Engineered for Continuous Heavy-Duty Duty Cycles and Harsh Operational Environments
How China's Premier Compressor Exporters Deliver Superior Reliability, Low Specific Energy Consumption, and Seamless Integration

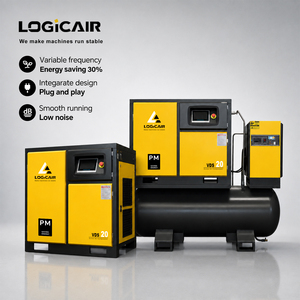

Permanent Magnet Variable Speed Drive (PM VSD) technology automatically adjusts motor speed to match real-time compressed air demand, eliminating idle energy waste and reducing lifecycle electricity costs by up to 35% compared to fixed-speed units.
Featuring asymmetric 5:6 rotor profiles machined via German CNC grinding centers. Minimal internal leakage tolerances guarantee high Free Air Delivery (FAD) per kilowatt, extending operational longevity beyond 60,000 continuous working hours.

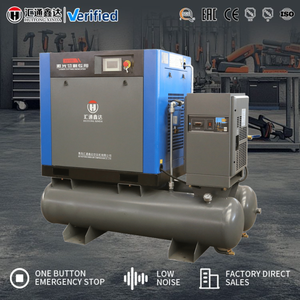

Combines a rotary screw compressor, air storage tank, refrigerated air dryer, and multi-stage precision particulate/oil filters onto a single plug-and-play chassis—ideal for laser cutting and space-constrained industrial facilities.
Industrial compressed air is frequently categorized as the "fourth utility" across modern manufacturing, heavy industry, automotive repair, and precision fabrication plants. For global plant operations directors, procurement managers, and engineering consultants, sourcing compressed air systems from China requires a rigorous assessment of Total Cost of Ownership (TCO), thermodynamic efficiency ratings, electrical grid compatibility, and international compliance standards (such as CE, ISO 9001:2015, ASME, and ISO 1217 testing protocols).
As a leading Chinese exporter of industrial air compression systems, our engineering frameworks prioritize high volumetric efficiency, durable mechanical design, and low specific energy consumption (SER). This whitepaper details the technological advancements, procurement considerations, and selection matrix necessary to optimize industrial utility investments.
Selecting the optimal compression mechanism depends fundamentally on the facility's required operating pressure, continuous duty cycle, and total volume (CFM / m³/min):
Over a standard 10-year operational life cycle of an industrial compressor, electricity costs represent approximately 70% to 80% of total expenditure, far exceeding initial capital machinery costs. Chinese exporters have led the adoption of Permanent Magnet (PM) Variable Speed Drive (VSD) motors to optimize part-load operational efficiency.
| Performance Parameter | Standard Fixed-Speed Compressor | Single-Stage PM VSD Compressor | Two-Stage PM VSD Screw Compressor |
|---|---|---|---|
| Motor Efficiency Standard | IE2 / IE3 Induction Motor | IE4 Permanent Magnet Motor | IE5 Ultra-Premium PM Motor |
| Unload Energy Waste | High (Consumes 30-40% power while idling) | Zero (Motor stops or ramps down dynamically) | Zero (Dynamic frequency modulation) |
| Pressure Band Stability | ±0.5 to ±1.5 bar fluctuation | ±0.1 bar precise pressure control | ±0.1 bar precise pressure control |
| Specific Energy Requirement (SER) | ~7.2 - 8.5 kW/(m³/min) | ~6.1 - 6.8 kW/(m³/min) | ~5.2 - 5.8 kW/(m³/min) |
| Est. Energy Cost Reduction | Baseline Reference | 25% - 35% Savings | 35% - 45% Savings |
Modern industrial applications demand tailored air treatment packages integrated with the primary compression loop:
As global manufacturing shifts toward carbon-neutral goals and Industry 4.0 digitization, top Chinese compressor manufacturers are pioneering structural technological evolutions:
Modern export-grade compressors are equipped with IoT-enabled PLCs supporting Modbus RS485, Ethernet, and cloud-based 4G connectivity. Factory engineers can remotely monitor real-time operating parameters—including vibration metrics, oil thermal degradation, discharge pressure drop, and motor winding temperature—to implement predictive maintenance before downtime occurs.
By dividing the compression ratio across two sequential screw rotor pairs, internal volumetric leakage is reduced while intercooling between stages lowers air temperature. This thermodynamic optimization yields up to 15% higher air delivery (CFM) for the exact same kW power input compared to traditional single-stage compressors.
In compliance with international environmental standards (such as EU F-Gas Regulations), Chinese exporters are transitioning refrigerated air dryers to eco-friendly refrigerants like R134a, R410A, and R513A, guaranteeing zero ozone depletion potential (ODP) and compliance with Western import standards.
Direct Factory Capabilities, Strict Quality Controls, and Comprehensive Global B2B Support
Every unit undergoes 100% full-load factory testing before dispatch, including ISO 1217 flow rate verification, acoustic decibel testing, electrical insulation safety audits, and 24-hour pressure retention testing.
We configure motors and control panels tailored to destination power grids globally, including 220V/380V/415V/440V at 50Hz or 60Hz, alongside dual-voltage transformers and NEMA/UL compliant electrical components.
Machinery is vacuum-sealed in moisture-proof barriers and packed inside solid plywood cases for oceanic freight. We maintain dedicated spare parts stocks (filters, separators, valves, lubricants) for immediate air-freight dispatch.
Direct Answers to Essential Technical and Supply Chain Inquiries from B2B Buyers and Engineering Teams.
Add up the total CFM or m³/min consumption of all connected pneumatic tools and equipment. Apply a 20-30% safety factor to account for simultaneous usage peaks, piping friction losses, and future expansion. For VSD units, size the maximum capacity to match peak load; the motor will automatically throttle down for lower demands.
For factories operating on multi-shift schedules (16-24 hours/day) with fluctuating air demand, upgrading from fixed-speed to a PM VSD rotary screw compressor typically yields full capital cost payback through electricity savings within 12 to 18 months.
Laser cutting requires ISO 8573-1 Class 1.2.1 air purity or better. Water moisture must be dropped to a pressure dew point below +3°C (or -20°C with desiccant dryers), and residual oil vapor must be filtered below 0.01 mg/m³ to protect laser optics and maintain clean cut edges.
Our export models comply fully with European CE directives (Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU), ISO 9001:2015 quality systems, and ISO 14001 environmental standards. Pressure vessels can be manufactured to ASME or PED codes upon request.
Routine air intake filter and oil filter replacements are performed every 2,000 to 3,000 operational hours. Full synthetic coolant replacement and oil separator filter service occur every 4,000 to 8,000 hours, depending on operating environment ambient temperatures and airborne dust levels.
We provide a standard 12-month full system warranty and up to 2-year/5-year extended protection on primary screw airends. Technical support is delivered via 24/7 video diagnostics, detailed digital schematics, and rapid global courier shipping for genuine replacement components.
Connect directly with our senior engineering team for custom flow calculations, detailed technical drawings, factory-direct wholesale pricing, and worldwide logistics quotes.
